MODEL KPS-931
Automated Shuttle System
Shuttle Parking System (KPS-931)
The Shuttle Parking System is a fully automated high-density parking solution designed for rapid vehicle handling. It utilizes automated shuttles, high-speed vertical elevators, and pallet transfer systems to move vehicles seamlessly to designated bays. Equipped with automatic vehicle dimension scanning, RFID guidance, touchscreen controls, and optional turntables, it minimizes retrieval cycle times for commercial hubs and high-rise towers.
Key Capabilities
Fully Automated Robotic Parking
Automatic Vehicle Inspection
Multi-Room Guidance
Integrated Turntable
High Speed Elevators (60m/min)

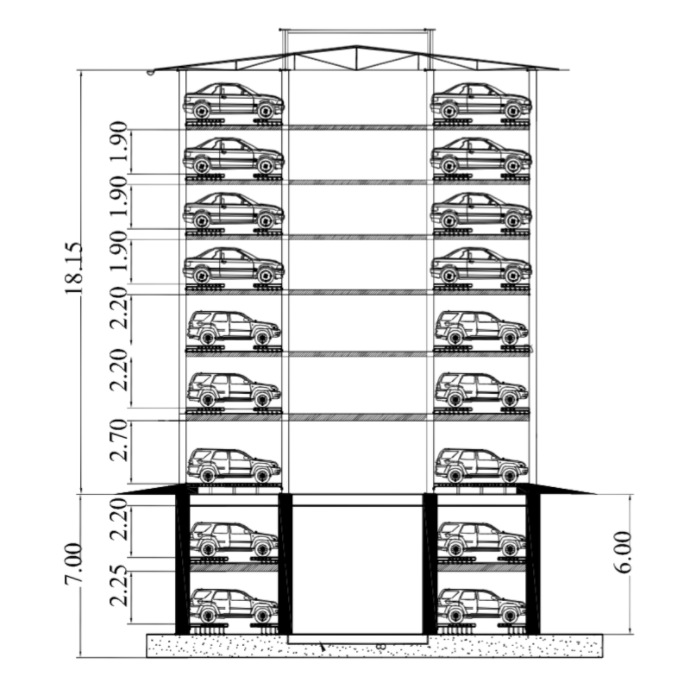

System Layout & Diagrams
Technical Performance Parameters
Lifting Motor
11.0 kW / 30.0 kW Variable Drive
Sliding Motor
0.75 kW – 2.2 kW Servo
Lifting Speed
40 – 60 m/min
Shuttle Speed
40 – 60 m/min
Pallet Speed
40 – 60 m/min
Turntable Speed
2 RPM Continuous
Operation Mode
Touchscreen + RFID IC Card
Power Supply
400 V / 50 Hz (3 Phase)
