PUZZLE PARKING SYSTEMS
Our Puzzle Parking systems are semi-automated layouts that utilize vertical lifting and horizontal sliding platforms. The ground level platforms slide laterally to clear a space, allowing the upper platforms to descend directly to the entry level. Offers independent parking and retrieval for all users.

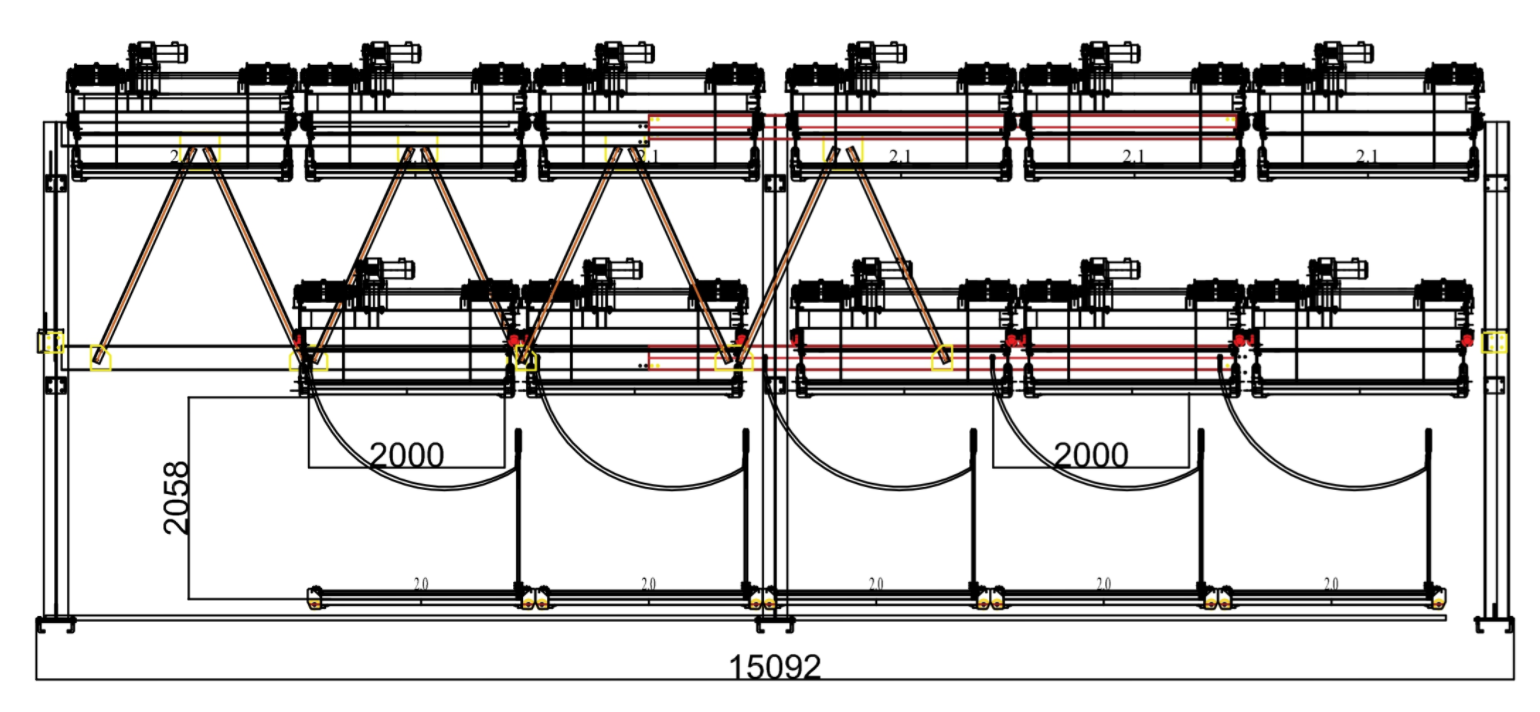

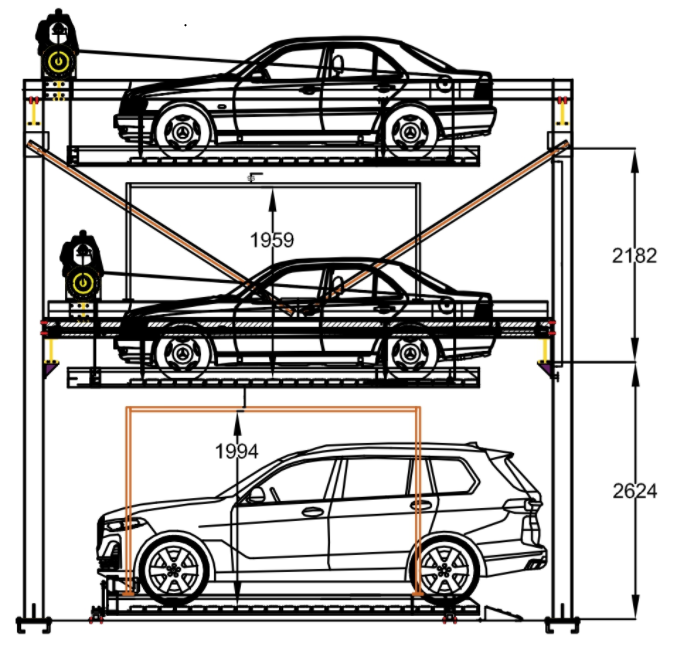

Mechanical Puzzle M(G+2) (KPS-923)
A mechanical motor-and-chain driven semi-automated layout offering 3 tiers of parking above ground level. Ideal for open spaces, commercial parking lots, or residential apartment backyards.
Technical Specifications
Maximum Car Size
| Length | 5000 MM - 5200 MM |
| Width | 2000 MM - 2100 MM |
| Height | 1800 MM - 2000 MM |
| Weight | 2000 Kgs to 2500 Kgs |
Power Source
| Main | AC 415V, 3 Ph, 50 Hz |
| Lighting | AC 230V, 1 Ph, 50 Hz |
| Operation | Push button / Touch screen |
| Control | PLC Controller |
Vertical Driving Unit
| Motor | 2.2kW / 3.7kW (3HP / 5HP) |
| Speed | 4.4 m/min |
| Drive | Geared motor with brake |
Horizontal Drive Unit
| Motor | 0.18 kW - 0.37 kW (0.5-0.75 HP) |
| Speed | 7 m/min |
| Drive | Geared motor with brake |

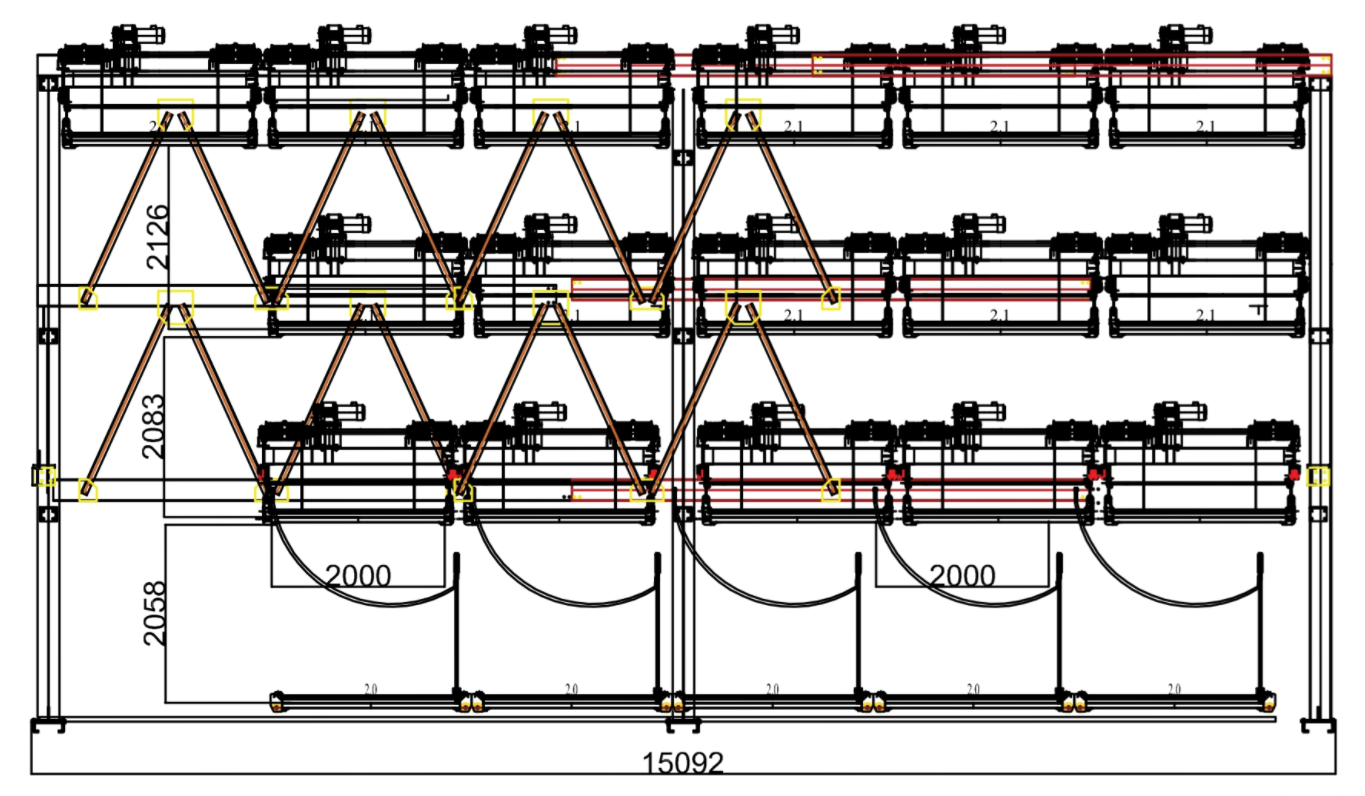

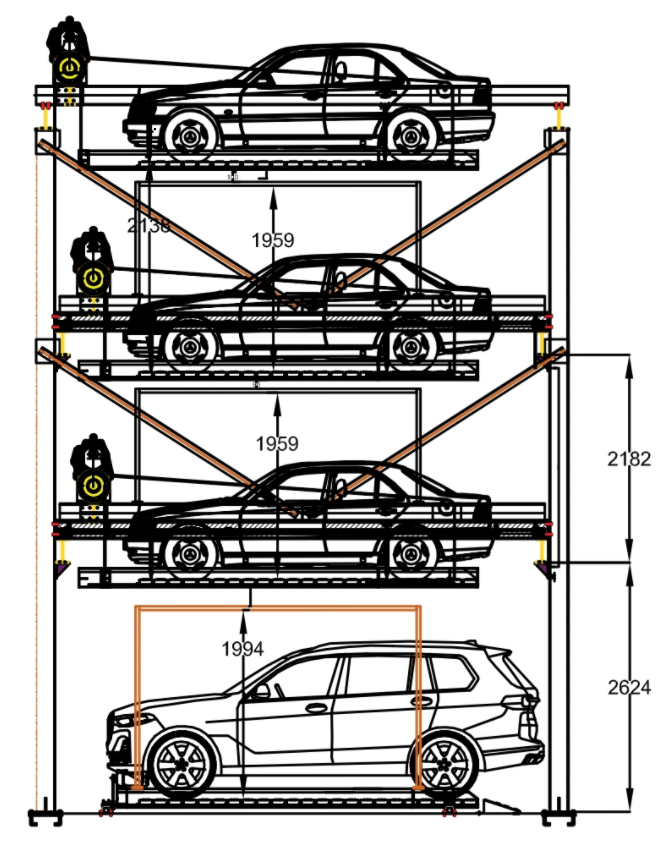

Mechanical Puzzle M(G+3) (KPS-924)
A four-tier semi-automated parking layout using high-strength steel frames. Ideal for commercial facilities, dealerships, and offices. The platforms slide and stack vertically via PLC programming controls.
Technical Specifications
Technical Specifications
Maximum Car Size
| Length | 5000 MM - 5200 MM |
| Width | 2000 MM - 2100 MM |
| Height | 1800 MM - 2000 MM |
| Weight | 2000 Kgs to 2500 Kgs |
Power Source
| Main | AC 415V, 3 Ph, 50 Hz |
| Lighting | AC 230V, 1 Ph, 50 Hz |
| Operation | Push button / Touch screen |
| Control | PLC Controller |
Vertical Driving Unit
| Motor | 2.2kW / 3.7kW (3HP / 5HP) |
| Speed | 4.4 m/min |
| Drive | Geared motor with brake |
Horizontal Drive Unit
| Motor | 0.18 kW - 0.37 kW (0.5-0.75 HP) |
| Speed | 7 m/min |
| Drive | Geared motor with brake |

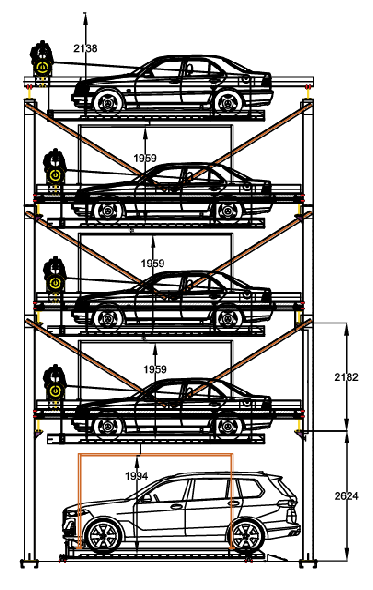

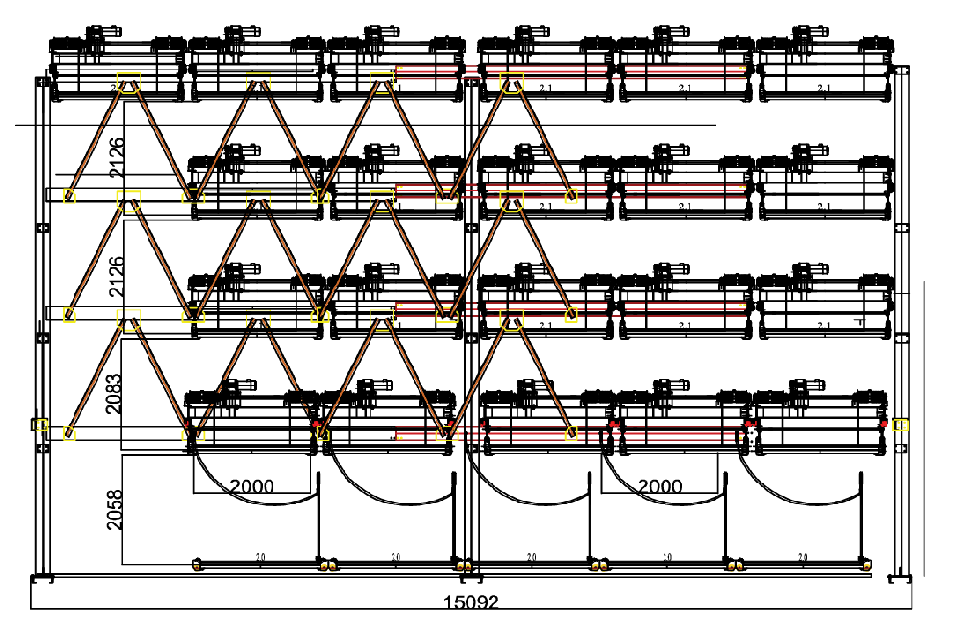

Mechanical Puzzle M(G+4) (KPS-925)
A premium five-level above ground semi-automated layout offering ultimate density. Integrates a smart touchscreen/RFID control board for quick car retrieval. Features robust steel structural beams and multiple photoelectric safety sensors.
Technical Specifications
Maximum Car Size
| Length | 5000 MM - 5200 MM |
| Width | 2000 MM - 2100 MM |
| Height | 1800 MM - 2000 MM |
| Weight | 2000 Kgs to 2500 Kgs |
Power Source
| Main | AC 415V, 3 Ph, 50 Hz |
| Lighting | AC 230V, 1 Ph, 50 Hz |
| Operation | Push button / Touch screen |
| Control | PLC Controller |
Vertical Driving Unit
| Motor | 2.2kW / 3.7kW(3HP / 5HP) |
| Speed | 4.4 m/min |
| Drive | Geared motor with brake |
Horizontal Drive Unit
| Motor | 0.18 kW - 0.37 kW (0.5-0.75 HP) |
| Speed | 7 m/min |
| Drive | Geared motor with brake |
