PUZZLE PARKING SYSTEMS
Our Puzzle Parking systems are semi-automated layouts that utilize vertical lifting and horizontal sliding platforms. The ground level platforms slide laterally to clear a space, allowing the upper platforms to descend directly to the entry level. Offers independent parking and retrieval for all users.

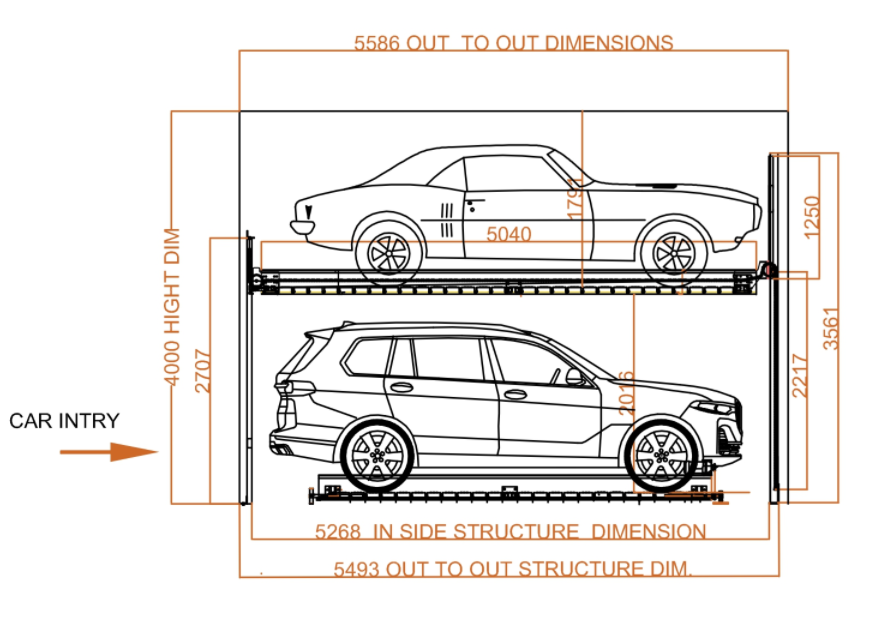

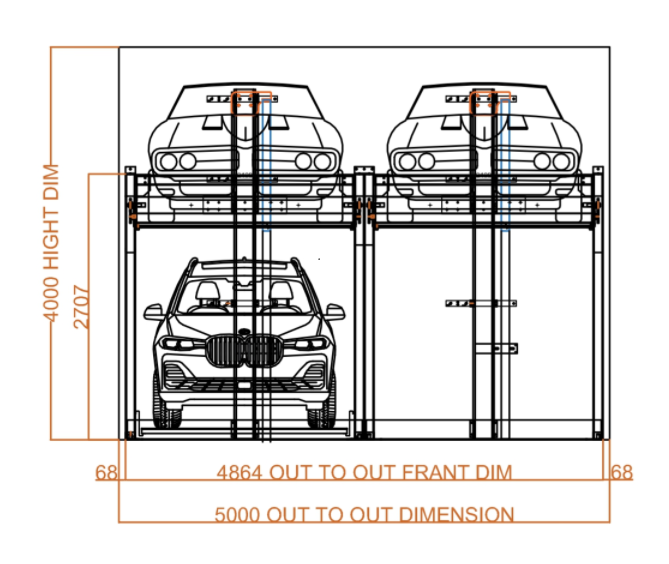

Hydraulic Puzzle H(G+1) (KPS-921)
Hydraulic Puzzle G+1 has 2 levels viz entry and upper. Entry-level platforms are driven horizontally using a motor connected to traction. Upper level platforms are driven vertically using individual cylinders connected to each platform. To drive out any car parked on upper level platforms, entry-level platforms shift to their left or right positions making a space clear to bring down respective upper level platform. Cars parked on entry-level platforms can be directly driven out.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms |
| PowerPack | 3 phase Induction Motor - 3 HP |
Structural Loads of system
| Vertical | 5000 Kgs per car |
| Horizontal | 700 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB4 | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

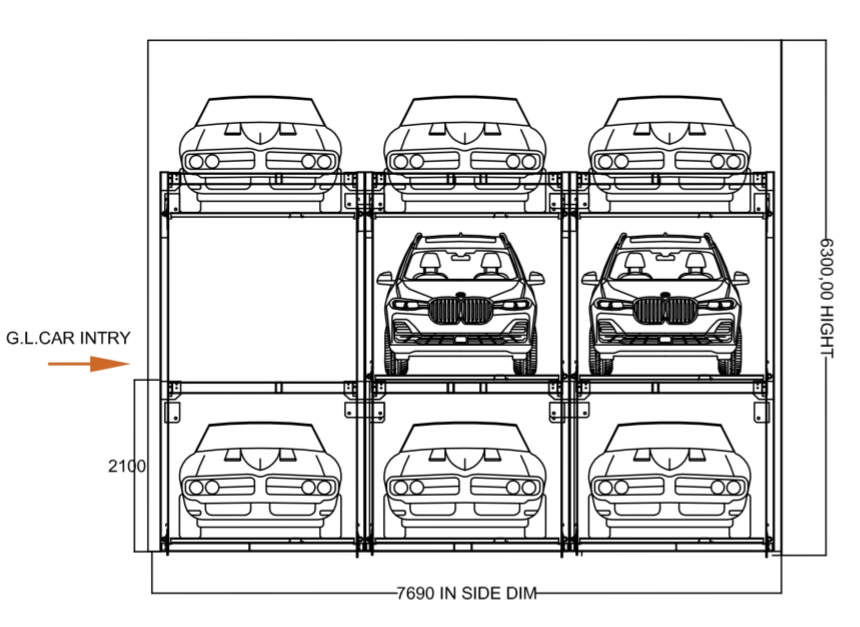

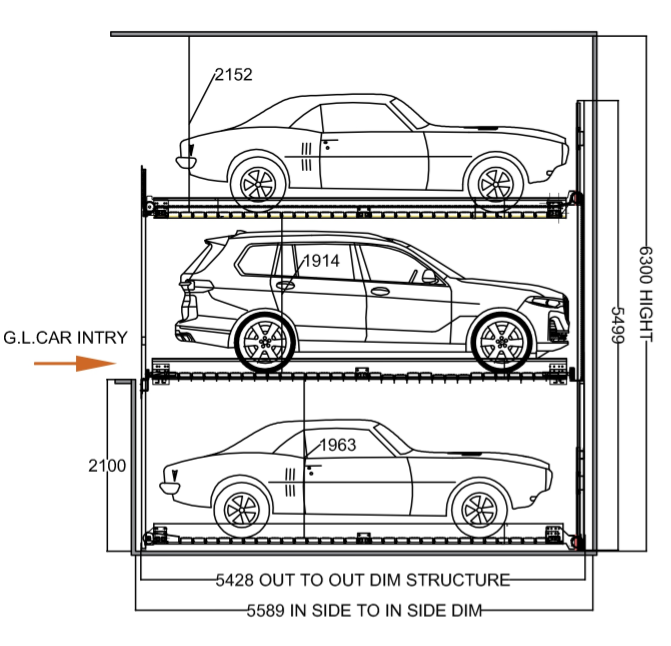

Hydraulic Pit Puzzle H(Pit -1+2) (KPS-922)
Puzzle -1+2 has 3 levels viz entry, upper and pit. Entry-level platforms are driven horizontally using a motor connected to traction. Upper and Pit level platforms are driven vertically using individual cylinders connected to each platform. To drive out any car parked on upper or pit level platforms, entry-level platforms shift to their left or right positions making a space clear to bring down respective pit level platform. Cars parked on entry-level platforms can be directly driven out.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms |
| PowerPack | 3 phase Induction Motor - 4 HP |
Structural Loads of system
| Vertical | 8000 Kgs per car |
| Horizontal | 700 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB4 | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |
