MODEL KPS-920
Heavy Duty 4-Column Electro-Mechanical Stacker
Mechanical Stack 4-Pole (KPS-920)
The Mechanical Stack 4 Pole Parking System is a highly robust, space-efficient parking solution that enables two vehicles to be parked vertically within a single bay. Featuring a heavy-duty four-column structural frame, motor-geared chain drive, and 24V DC auxiliary safety circuit, it delivers maximum stability for SUVs and sedans in commercial garages, automotive showrooms, and residential towers.

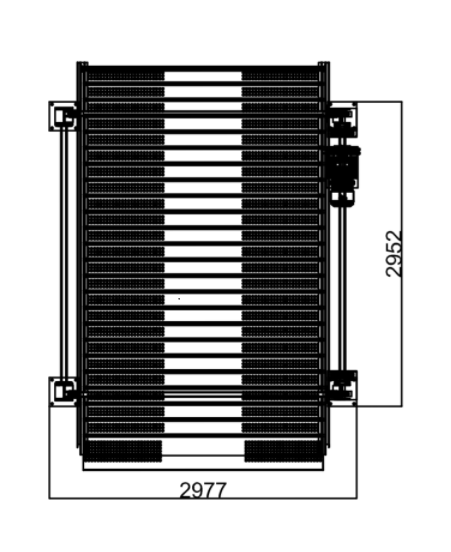

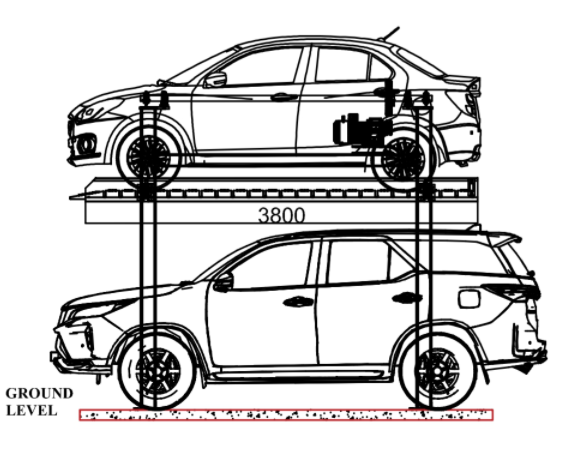

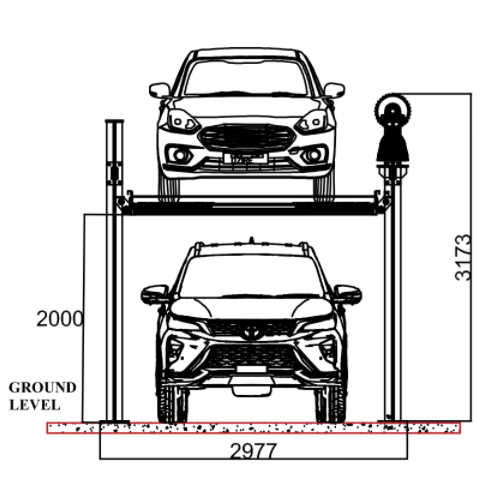

System Gallery
System Information & Technical Specs
Loading Capacity
2000 Kgs per vehicle
Drive System
Electro-Mechanical Motor & Chain
Geared Motor Power
1.5 kW High Efficiency
Electric Power
3 Phase, AC 415V, 50Hz
Control Voltage
Safe 24V DC Auxiliary Circuit
Switchgear Requirement
4 Pole, 63 Amps MCB
