HYDRAULIC STACK PARKING
Our Hydraulic Stack Parking systems use heavy-duty hydraulic lifting platforms to double or triple parking spaces within the same footprint. Excellent for residential buildings, office complexes, commercial showrooms, and valet parking garages.

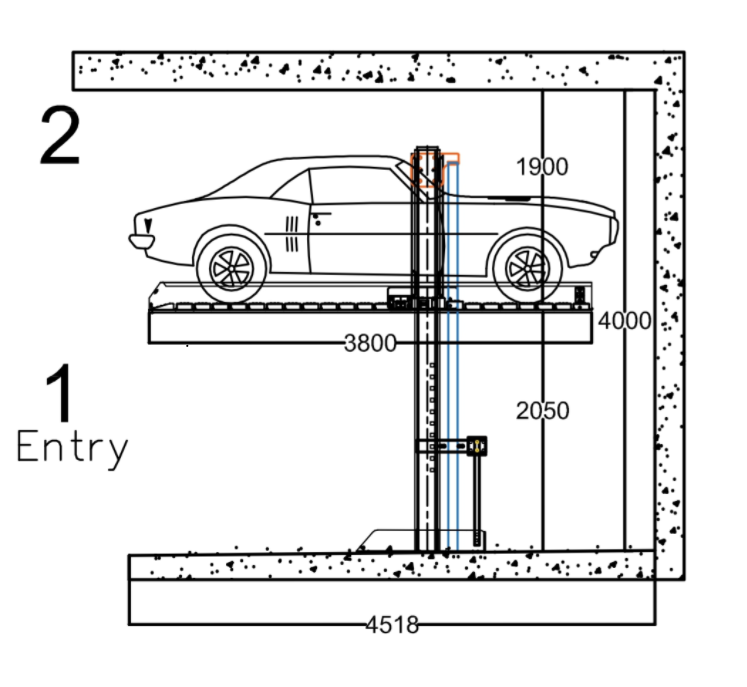

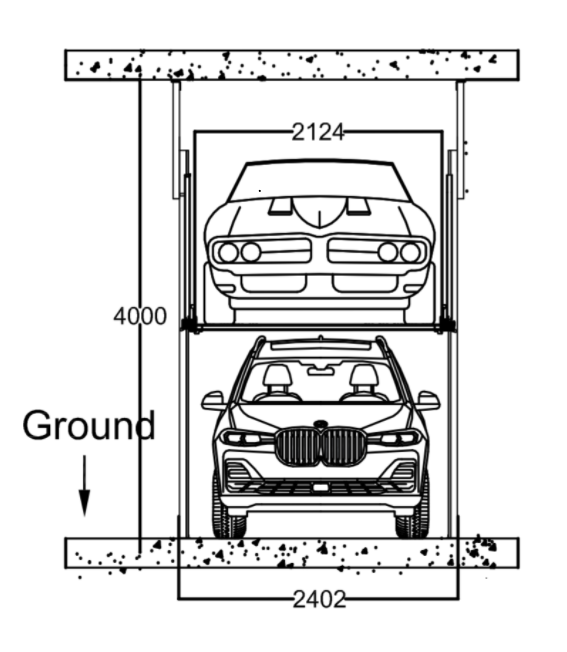

G+1 Stack Parker (KPS-911)
Hydraulic G+1 uses a platform that is driven upwards and downwards. A car is parked on the platform when it is at the ground level. When driven upwards to its peak level, another car can be parked below the platform.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 3 HP |
Structural Loads of system
| Vertical | 2000 Kgs per car |
| Horizontal | 700 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable Routing | From Main Switch to MCB |
| Cable Specification | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

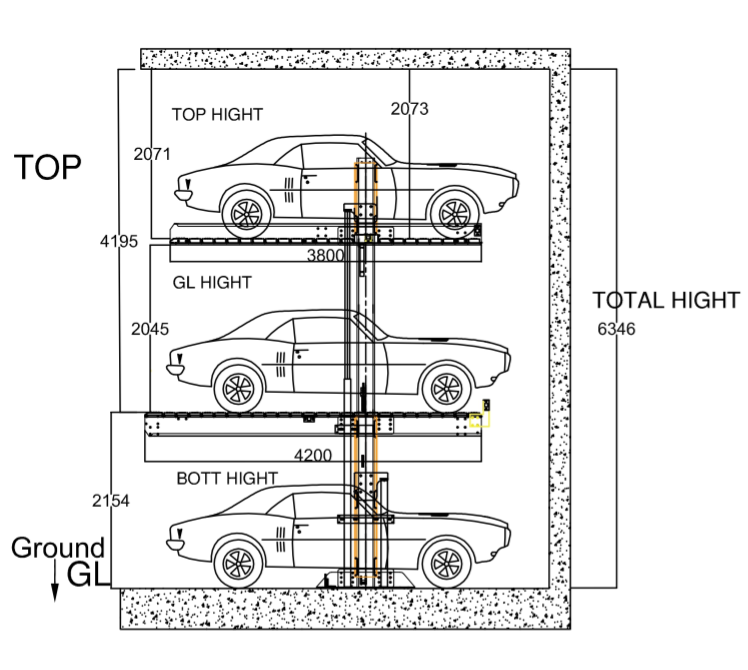

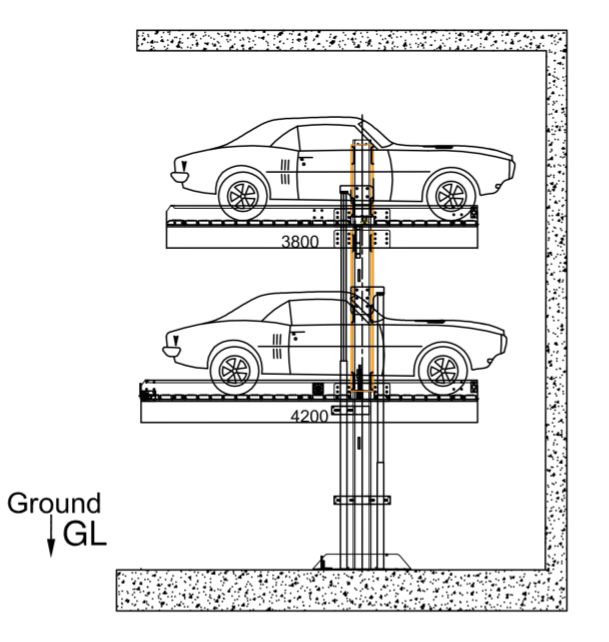

G+2 Stack Parker (KPS-912)
Hydraulic G+2 uses 2 platforms, one above the other, to be driven upwards and downwards. While two cars are parked on both the platforms, the third car is parked at ground level. It uses the same mechanism as 2DS with higher parking efficiency but with increased dependency.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 4 HP |
Structural Loads of system
| Vertical | 5000 Kgs |
| Horizontal | 1500 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

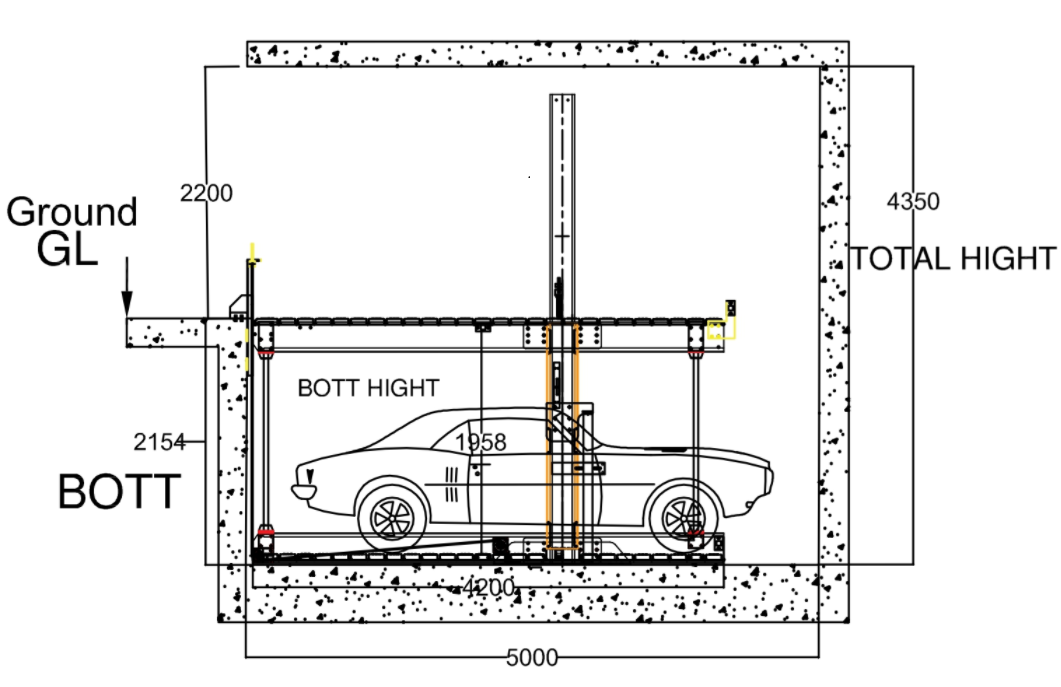

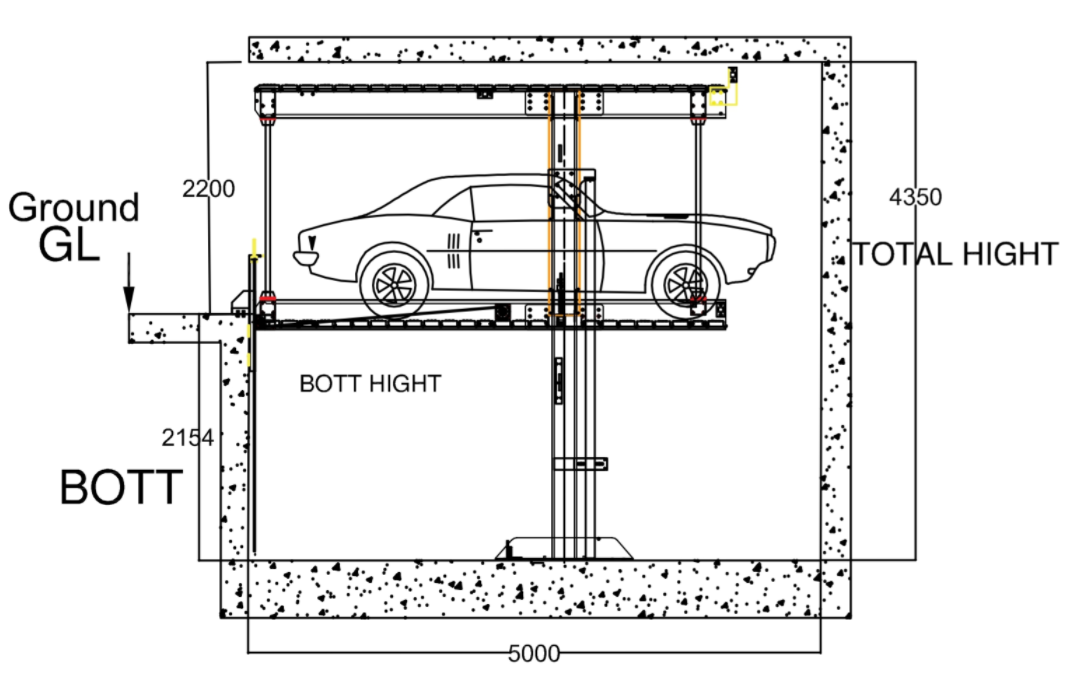

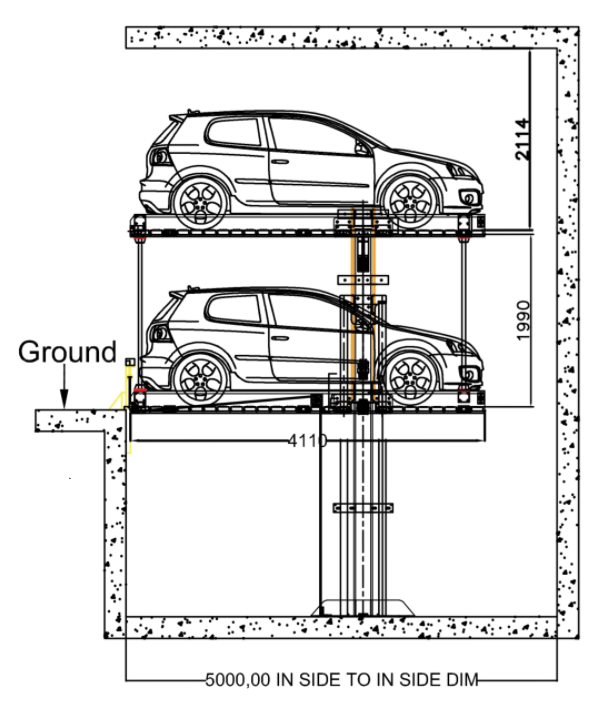

Pit + G Parker (KPS-913)
Hydraulic Pit + G uses 2 interconnected platforms similar to G + Pit. The platforms are driven upwards and downwards together. To take out the lower car, upper car has to be taken out and parked elsewhere. Pit + G is used specifically where the height available is limited but provision for pit is possible.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 3 HP |
Structural Loads of system
| Vertical | 5000 Kgs |
| Horizontal | 500 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

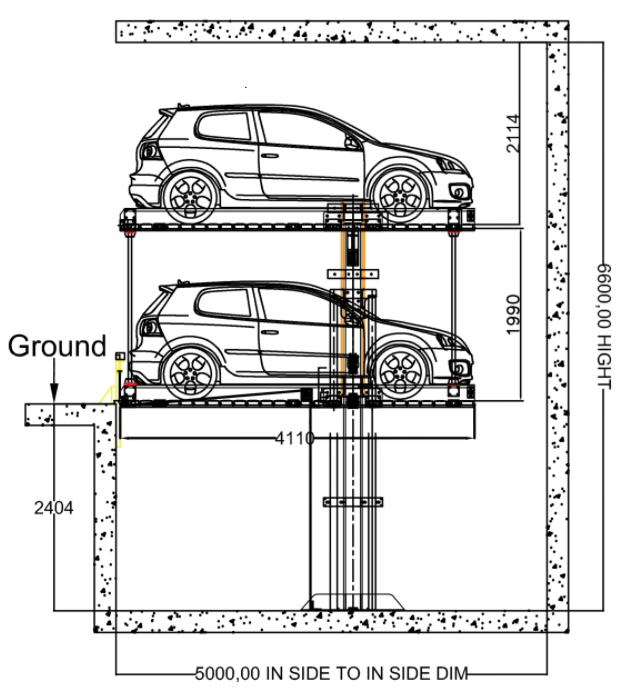

G + Pit Stacker (KPS-914)
Hydraulic G + Pit uses 2 interconnected platforms that are driven upwards and downwards together. While one car is parked on the available platform, the other car is parked on the lower level platform. To retrieve the upper car, system takes down both the platforms together. Lower car goes inside the pit while the upper car reaches the ground level that can be taken out. To take out the lower car, system takes up both the platforms together and lower car reaches the ground level.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 3 HP |
Structural Loads of system
| Vertical | 5000 Kgs |
| Horizontal | 700 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

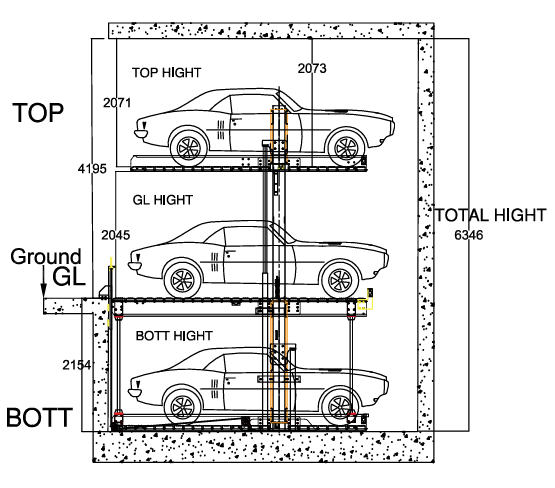

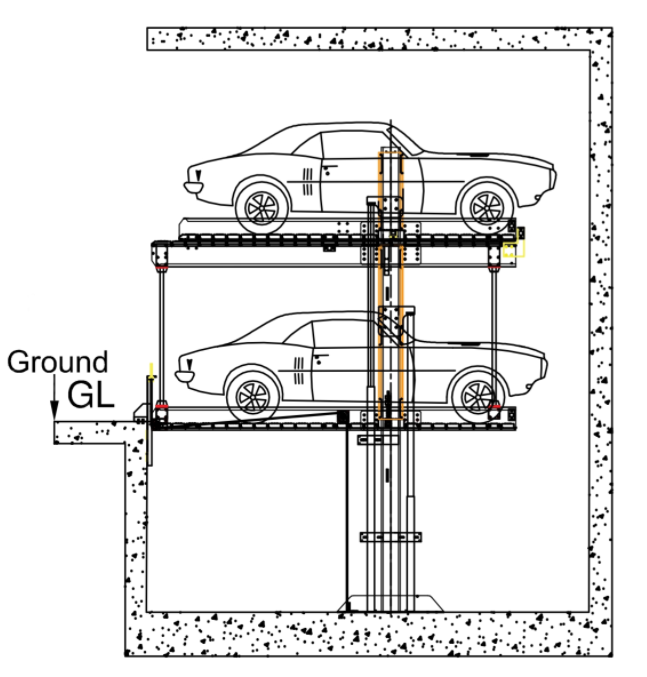

Pit G+1 Parker (KPS-915)
Pit G+1 uses 3 platforms, 2 of which (entry and lower level) are interconnected and upper level platform is driven upwards and downwards separately. To take out upper or lower level car, entry-level car has to be driven out and parked elsewhere.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 3 HP |
Structural Loads of system
| Vertical | 8000 Kgs |
| Horizontal | 700 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

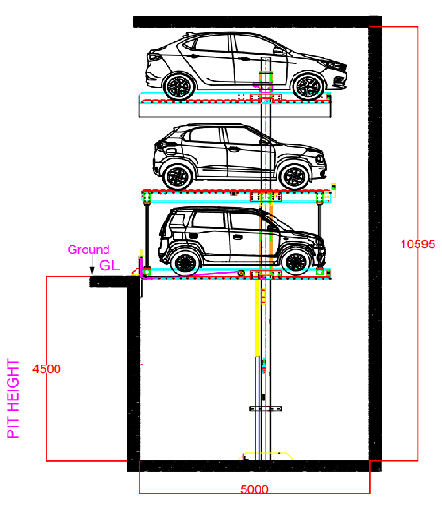

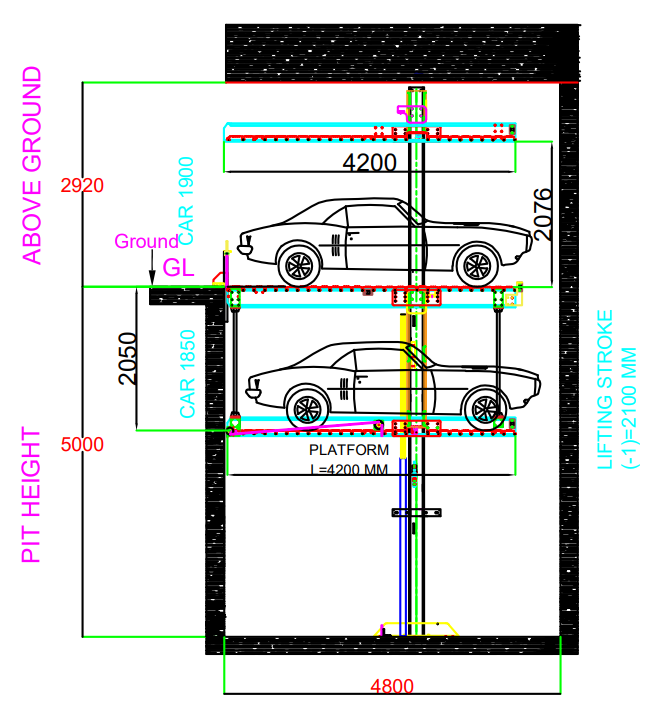

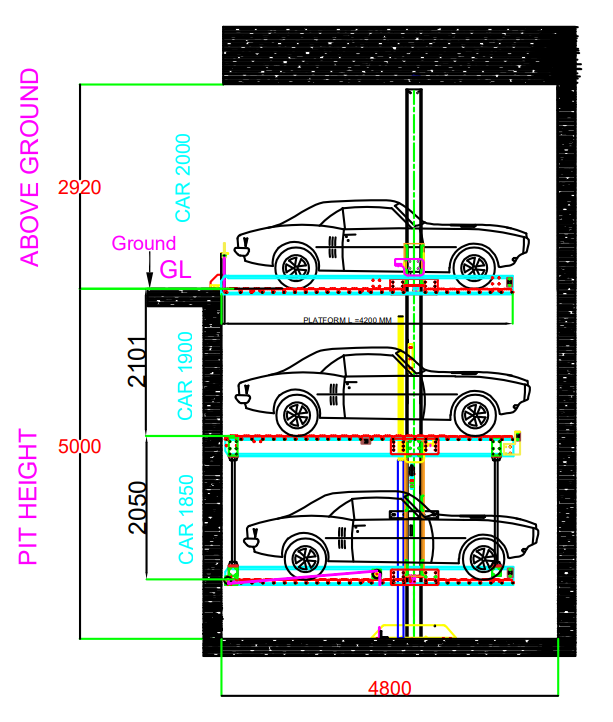

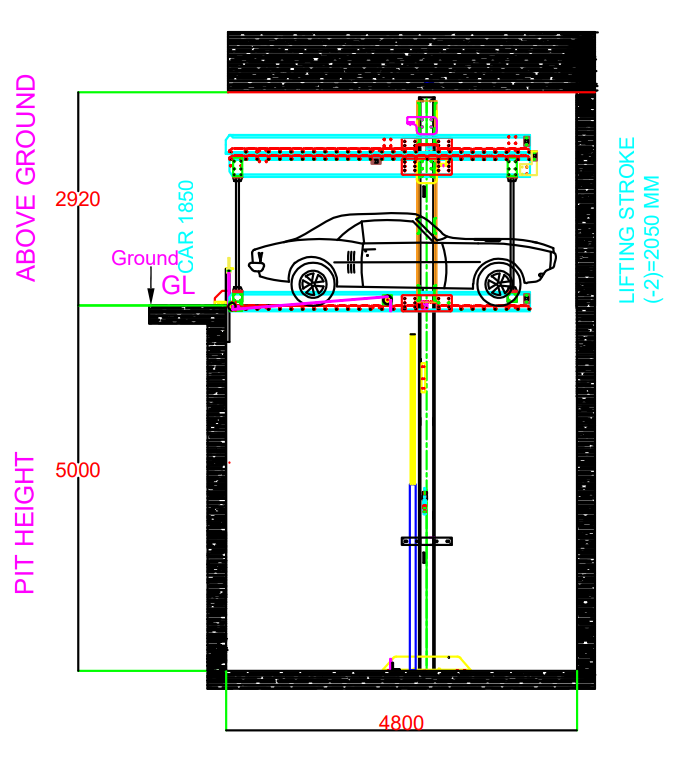

-2 Pit+G Dependent Parker (KPS-916)
Pit -2 Pit+G (Dependent) uses 3 platforms, 2 of which (entry and lower level) are interconnected and upper level platform is driven upwards and downwards separately. To take out lower level car, upper level car has to be driven out and parked elsewhere.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 4 HP |
Structural Loads of system
| Vertical | 8000 Kgs |
| Horizontal | 700 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

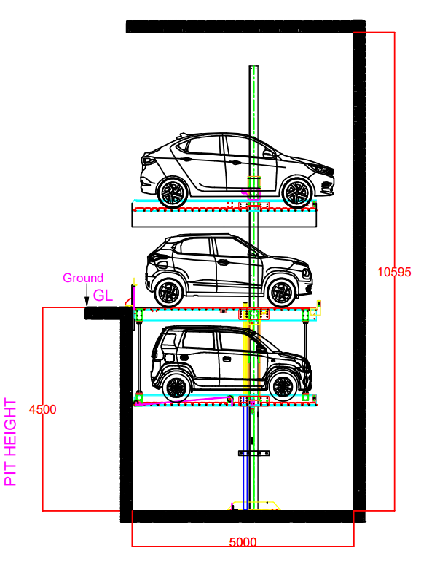

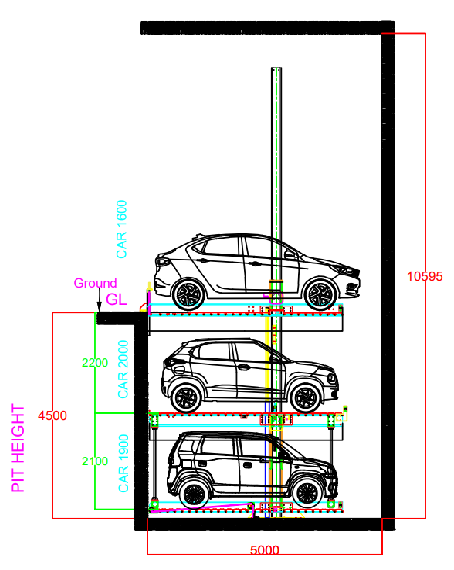

-2 Pit+G Independent Parker (KPS-917)
-2 Pit+G (Independent) uses 3 interconnected platforms that are driven upwards and downwards together. While one car is parked on the available platform, the other car is parked on the lower level platform. To retrieve the upper car, system takes down both the platforms together. Lower car goes inside the pit while the upper car reaches the ground level that can be taken out. To take out the lower car, system takes up both the platforms together and lower car reaches the ground level.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 4 HP |
Structural Loads of system
| Vertical | 8000 Kgs |
| Horizontal | 1000 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |

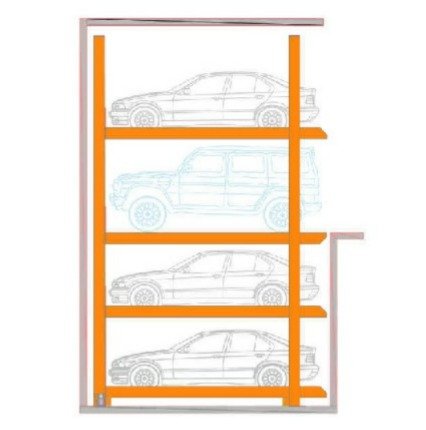

-1 Pit+G+2 Parker (KPS-918)
-1 Pit+G+2 uses 4 platforms driven upwards and downwards in a group of 2 platforms each. 1st and 2nd level platforms make a group and similarly, 3rd and 4th level platforms also make a group. Car parked on 2nd level platform has to be driven out and parked elsewhere while taking out car parked on 4th level platform. 1st, 2nd and 3rd level cars can be driven out independently.
General Specifications
| Loading Capacity | 2000 Kgs per car |
| Drive | Hydraulic |
| Clear Height Coating | Sand blasted, Epoxy Powder coating with 80 to 90 microns. |
| PowerPack | 3 phase Induction Motor - 4 HP |
Structural Loads of system
| Vertical | 10000 Kgs |
| Horizontal | 900 Kgs |
Electrical Requirement for system
| Incoming Supply | 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack |
| Switchgear | 4 pole, 63 amps MCB for each powerpack |
| Cable from Main switch to MCB | 4 core, 2.5 sq mm, armoured Copper cable with a separate earth wire |
